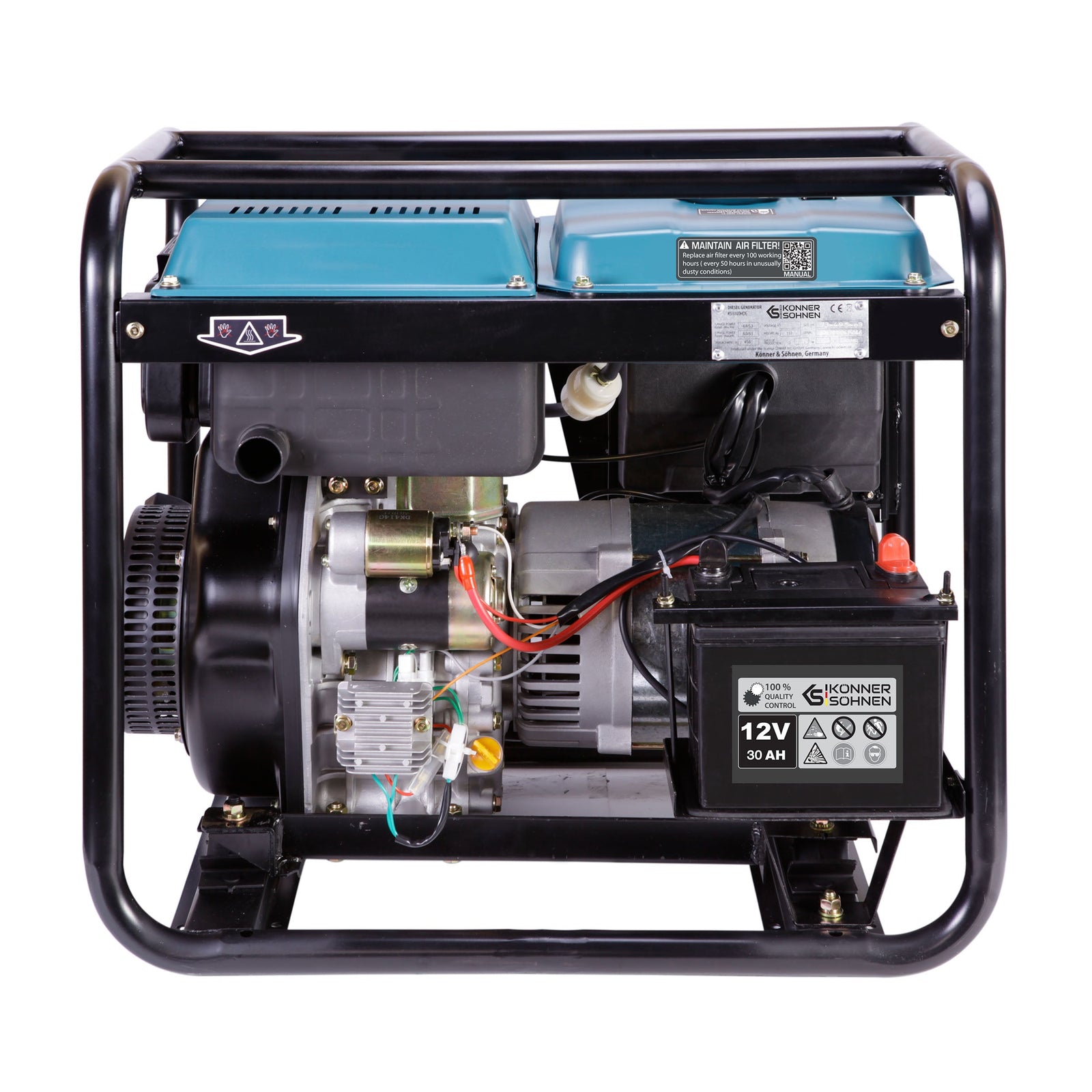

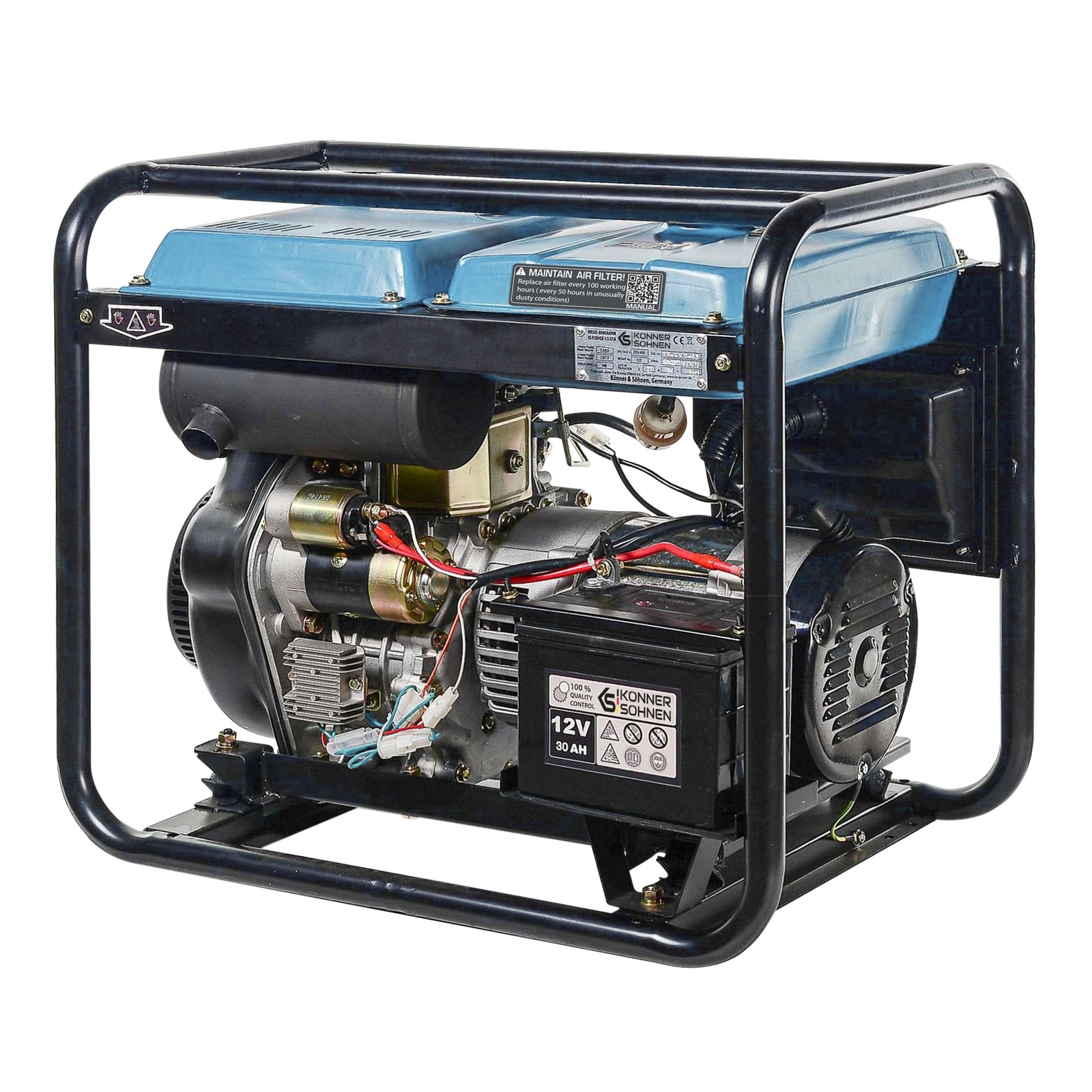

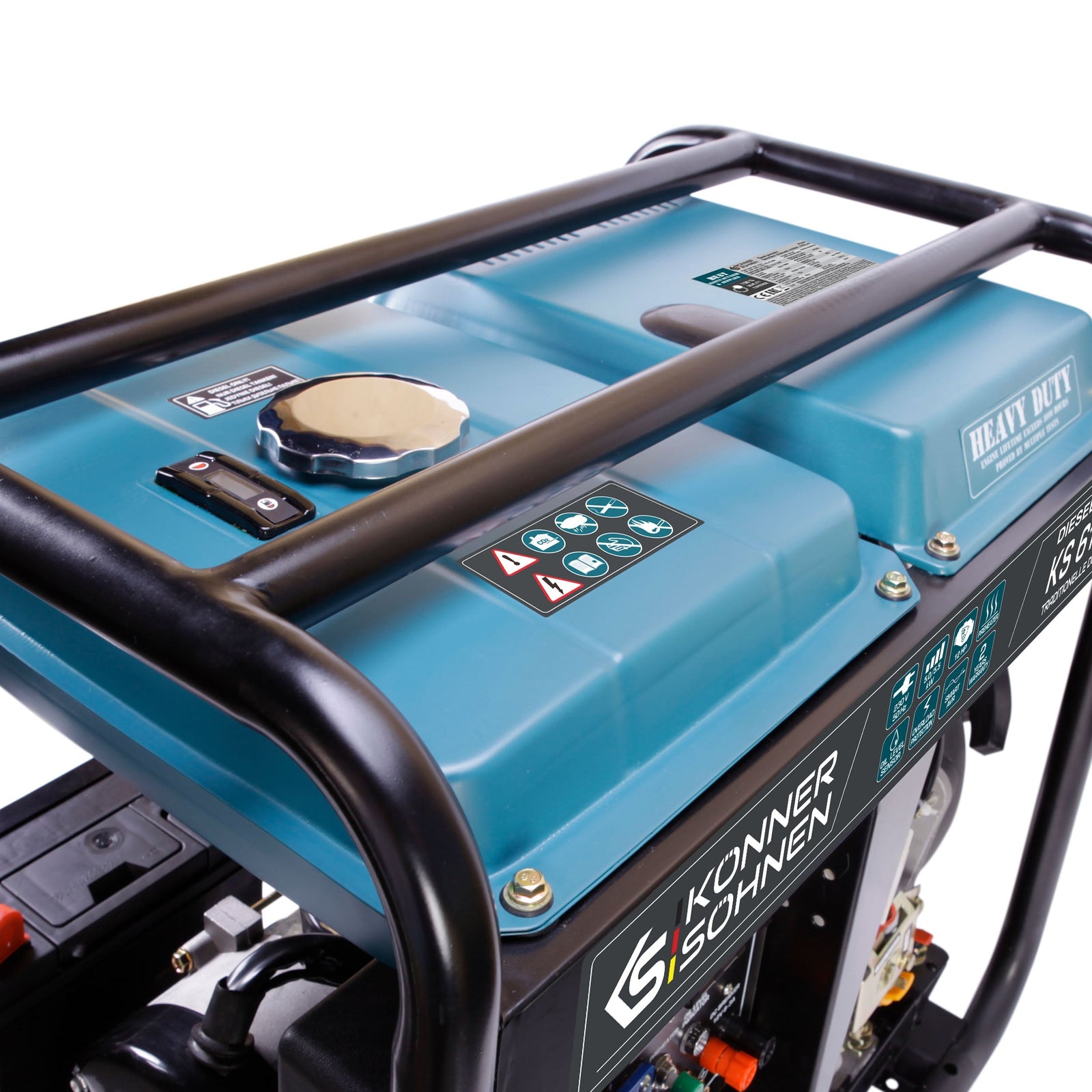

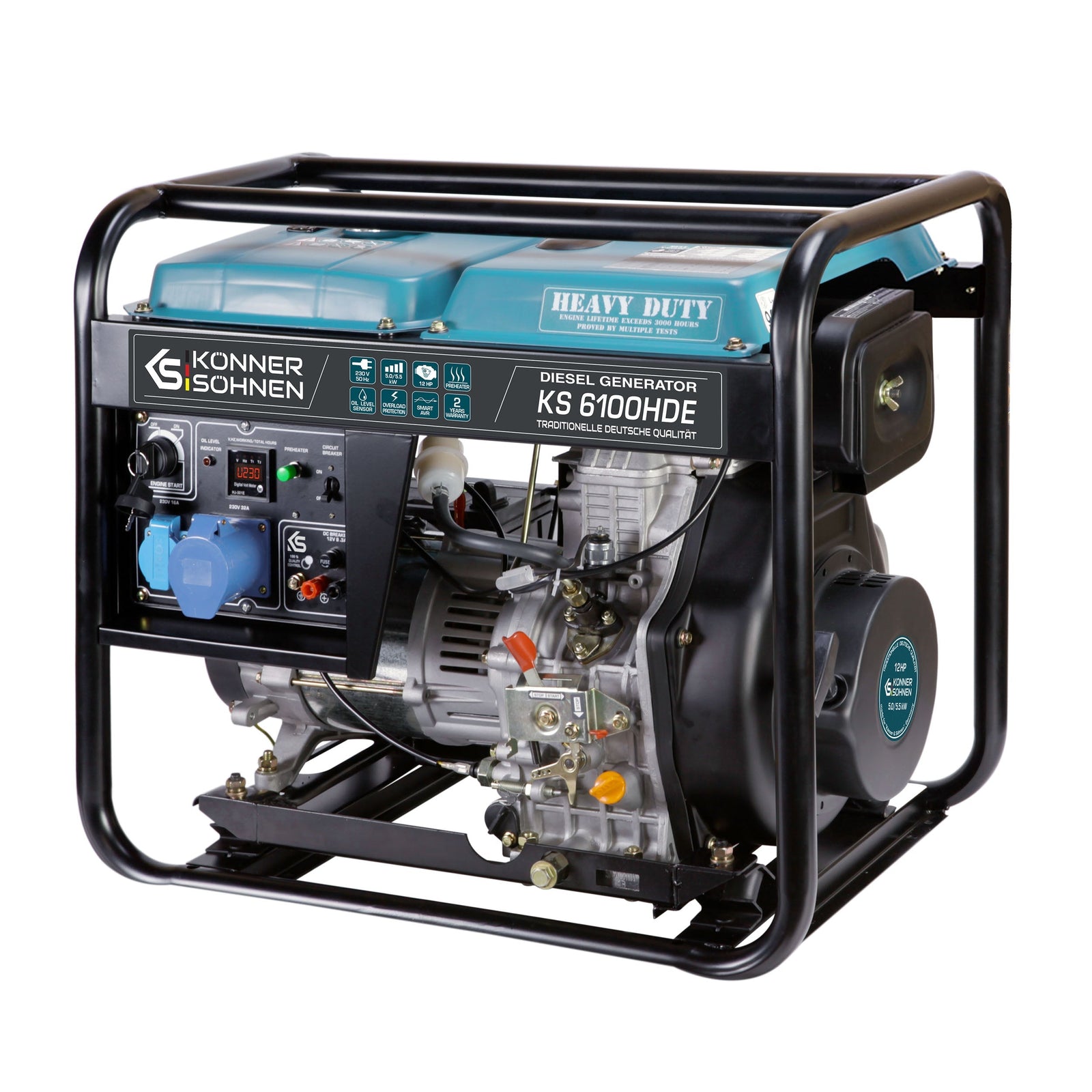

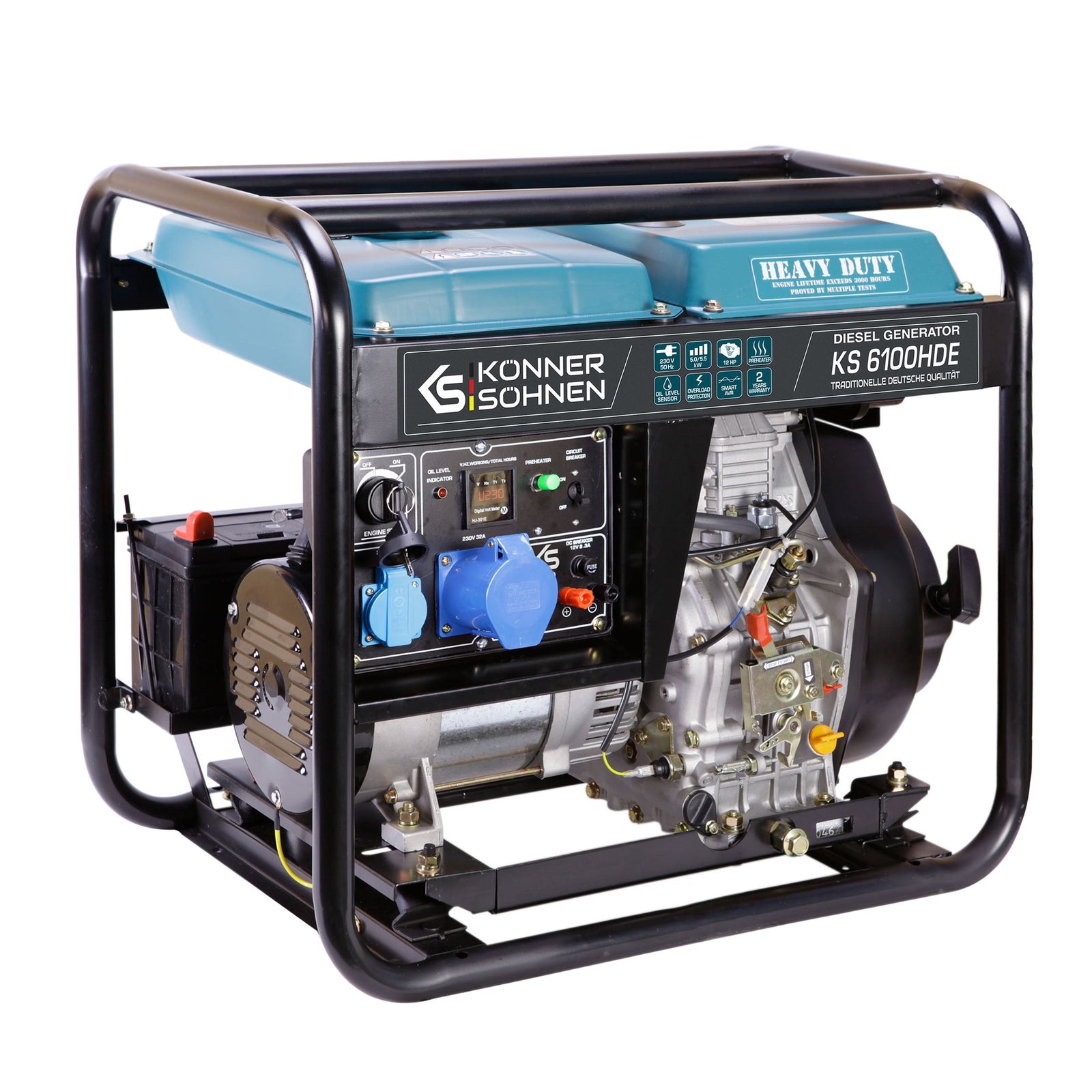

Diesel generator "Könner & Söhnen" KS 6100HDE (EURO V)

Diesel generator "Könner & Söhnen" KS 6100HDE (EURO V)

Name: Diesel generator "Könner & Söhnen" KS 6100HDE (EURO V)
Brand: Könner & Söhnen
SKU: 4260405362592
Price: 1259.0 EUR
Availability: OutOfStock

Unavailable

€1.259,00

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kW:	5.5/5.0
Fuel tank volume, l:	11
Runtime at 50% load, h***:	8.5

Specification

Voltage, V	230
Max/Nominal power (230V), kW	5.5/5.0
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	23.91
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Runtime at 50% load, h***	8.5
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 440HD-V
Engine power, hp/kW	12.0/8.83
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	418
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32
Accumulator (A·h)	30
Output for ATS	-
Protection class	IP23M
Includes	Generator, Packaging, Manual, Screwdriver PH2 6.0 mm, Portable plug 230V 16 A (2Р+РЕ), 32 A CEE plug (2P+E), Start key, Open end wrench 8х10 mm, 12х14 mm, 17х19 mm
Gross dimensions (LxWxH), mm	750x520x710
Net weight, kg	107
Gross weight, kg	115.0
SKU	KS 6100HDE
Barcode	4260405362592

Benefits

A reliable branded engine with its own seal has a power reserve that ensures stability across the full voltage range
Extended engine life: the generator has a longer service life and can operate for more hours
Intelligent voltage stabilization system AVR
The LED display provides essential information about the generator's operation, allowing you to monitor its status and operate it safely
Equipped with rubber mounts to protect the frame from corrosion.

Delivery

Free shipping: receive your order in just 1-5 business days.

Payment

We offer a wide range of secure and convenient payment methods, including:

Features

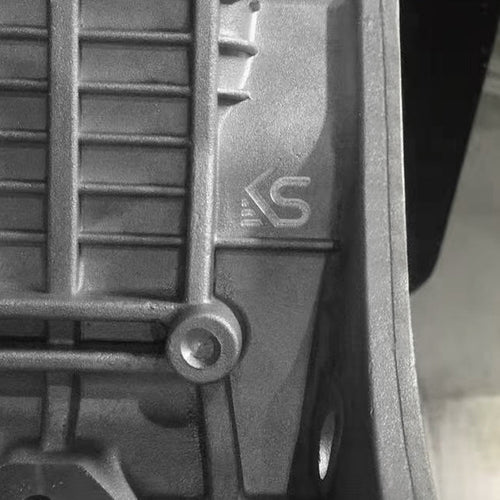

Könner & söhnen engines

Engines for both diesel and gasoline generators are manufactured under the license of DIMAX Int. GmbH and are marked with K&S logo. High power of engines in relation to the alternator allows to receive the declared power output and maintain stable work at any load. All engines are tested for continuous operation, and then disassembled and examined for trouble-shooting purposes. Each engine and each generator have an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the latest EURO V emission standards.

Increased engine resource

Könner & Söhnen® "HEAVY DUTY" series diesel generators feature an increased engine lifespan, ensuring a longer service life and the ability to operate for more hours without interruption, as confirmed by multi-hour, multi-level testing. Of course, the engines achieve such high performance through proper operation and scheduled maintenance.

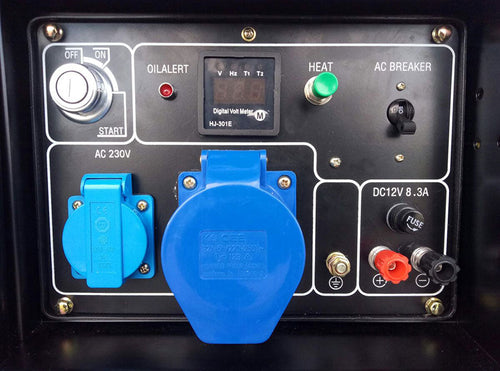

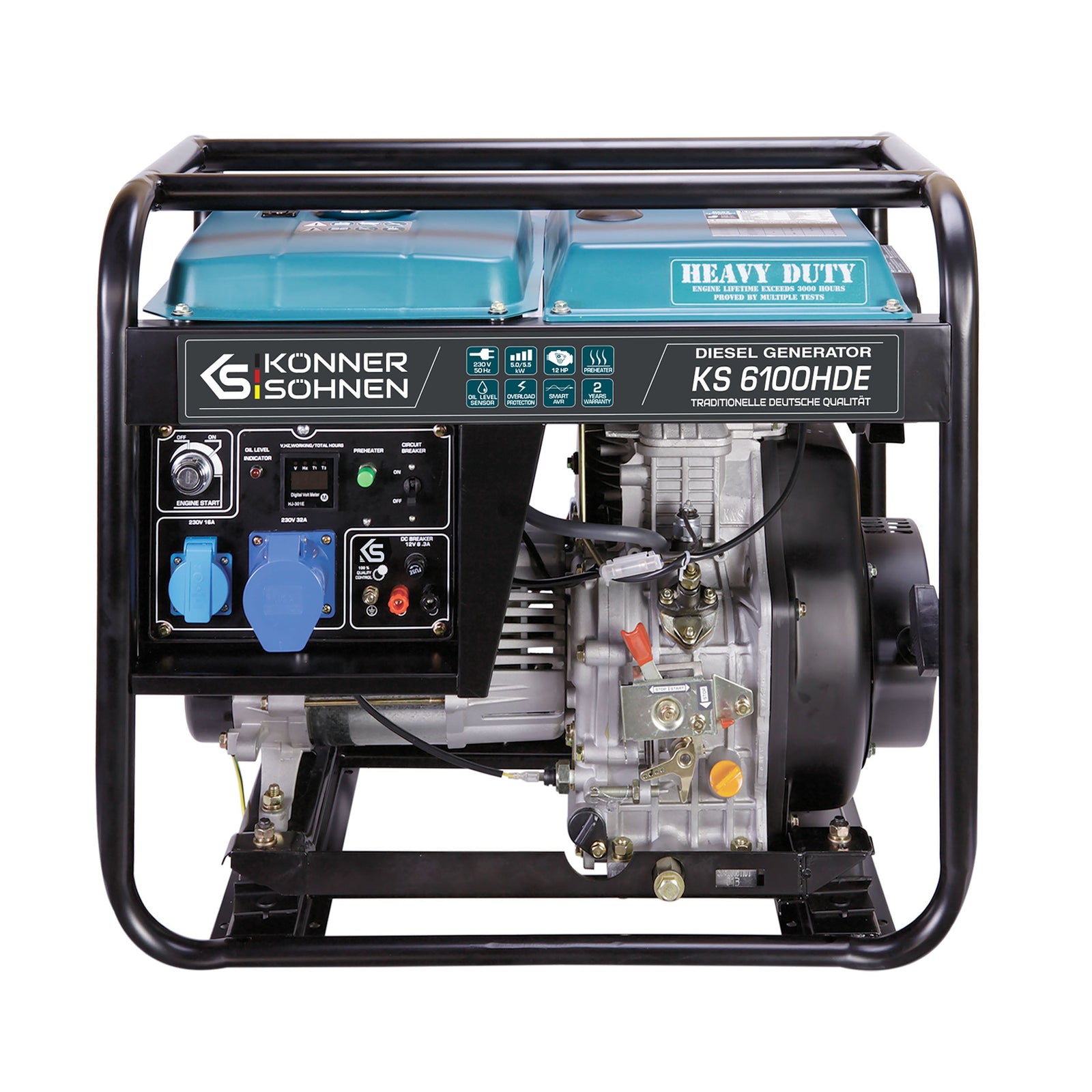

Ergonomic control panel

Convenient and ergonomic generator's control panel allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintain the generator, extending the operation life.

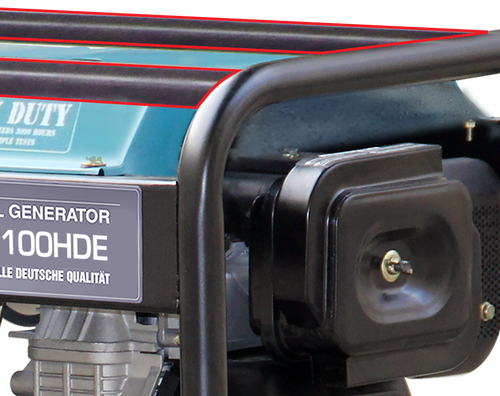

Enforced frame

Additional frame reinforcement with the upper protective strips allows HEAVY DUTY professional series generators to operate in a more rigid mode. The reinforced frame structure protects the tank against damage during operation and transportation.

Preheater function

All Heavy Duty series generators are equipped with a preheat function, which allows you to easily start a generator in winter.

Avr

“Könner & Söhnen” series diesel generators are equipped with intelligent voltage stabilization system AVR. It allows to keep the voltage at a constant value of 230 V and protects against unwanted short circuits.

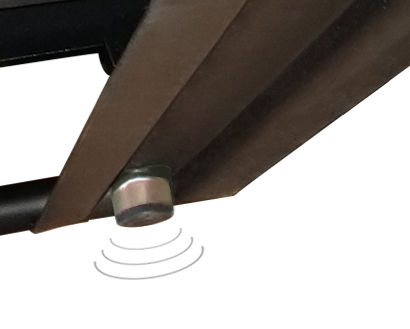

Dampers to lower vibration

All models of Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. The working generator will not damage the floor covering, and the frame coating will not be scratched.

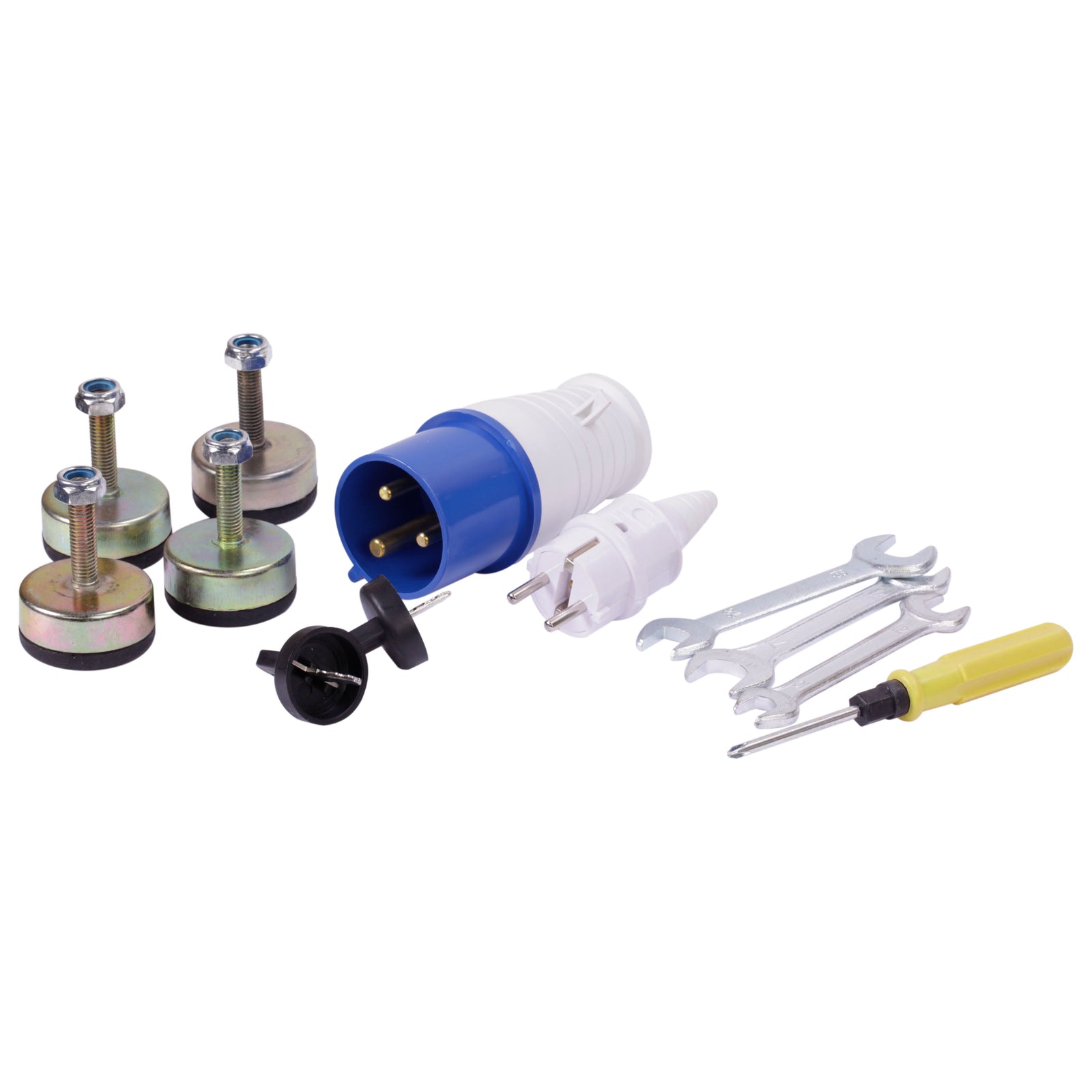

Accessories set

Generator is equipped with additional accessories: a portable 2P+PE 16A 230V power plug, a portable 2P+E 230V 32A power plug, a 8x10mm hook key, 12x14mm and 17x19mm keyholes and a two way 6.0mm PH2 screwdriver.

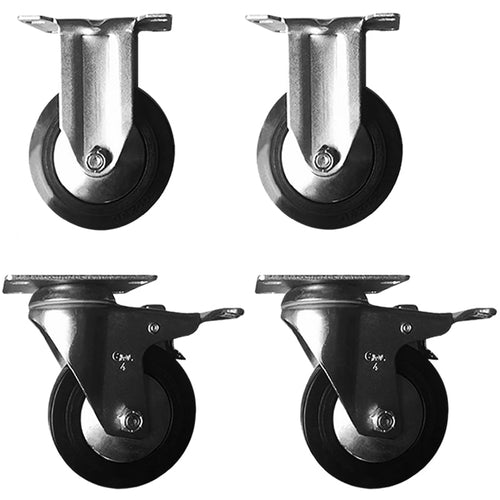

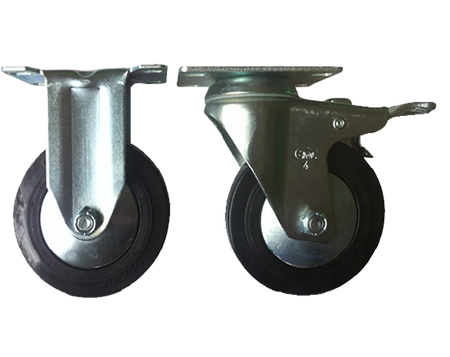

Optional KS 6-9D KIT

Transportation kit KS 6-9D KIT includes: wheels – 4 pcs.

Specification

Diesel generator "Könner & Söhnen" KS 6100HDE (EURO V)

Voltage, V	230
Max/Nominal power (230V), kW	5.5/5.0
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	23.91
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Runtime at 50% load, h***	8.5
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 440HD-V
Engine power, hp/kW	12.0/8.83
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	418
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32
Accumulator (A·h)	30
Output for ATS	-
Protection class	IP23M
Includes	Generator, Packaging, Manual, Screwdriver PH2 6.0 mm, Portable plug 230V 16 A (2Р+РЕ), 32 A CEE plug (2P+E), Start key, Open end wrench 8х10 mm, 12х14 mm, 17х19 mm
Gross dimensions (LxWxH), mm	750x520x710
Net weight, kg	107
Gross weight, kg	115.0
SKU	KS 6100HDE
Barcode	4260405362592

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
