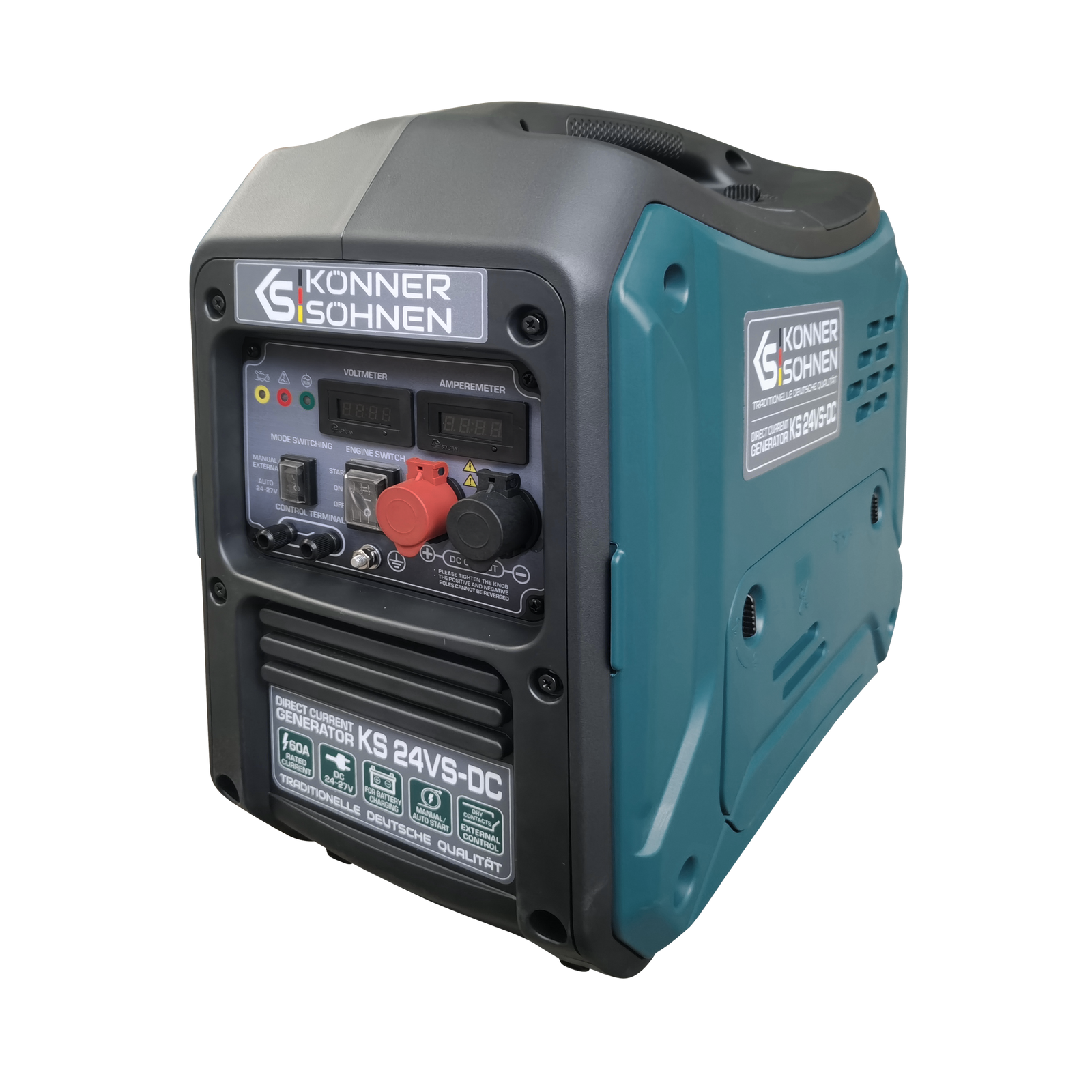

KS 24VS-DC Direct Current Generator

Name: KS 24VS-DC Direct Current Generator
Brand: Könner & Söhnen
SKU: 4260405368297
Price: 749.0 EUR
Availability: InStock

Available

€749,00

Specification

Voltage, V:	24-27
Nominal power, kW:	1.6
Engine start:	automatic, manual

Benefits

Ideal solution for charging batteries in 24V power systems such as solar stations, video surveillance, security systems, and for maintaining/charging vehicle batteries during parking.
Automatic generator operation: in AUTO mode, the generator works as a battery charger — it automatically starts when the battery is low, recharges it, then stops and switches to standby after charging.

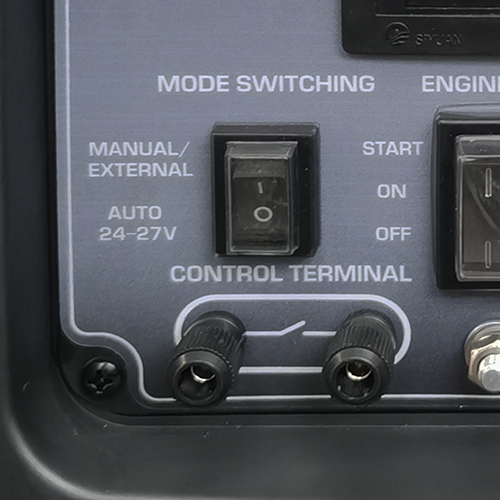

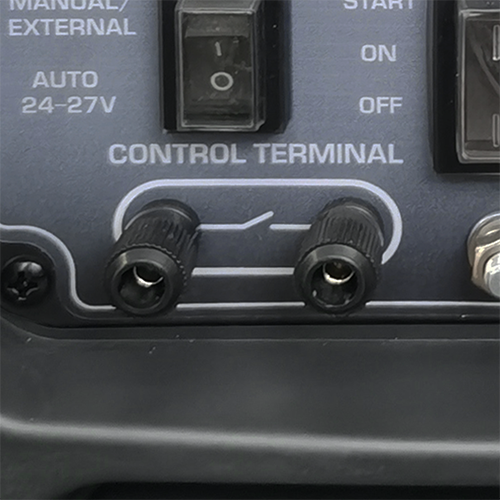

MANUAL/EXTERNAL mode: enables manual start or control via an external device using "dry contacts".
The soundproof casing significantly reduces operating noise, making the generator comfortable to use in residential or work areas.

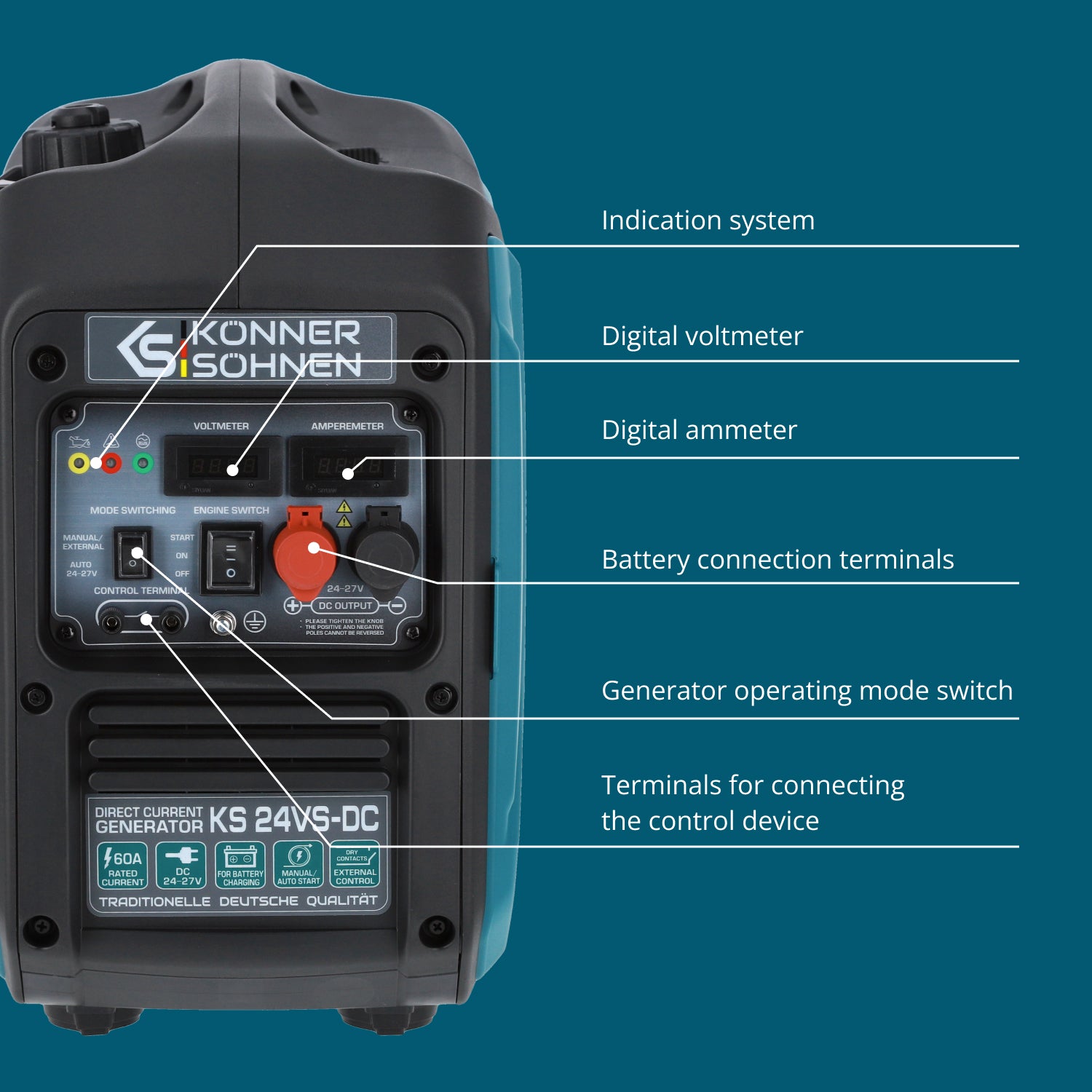

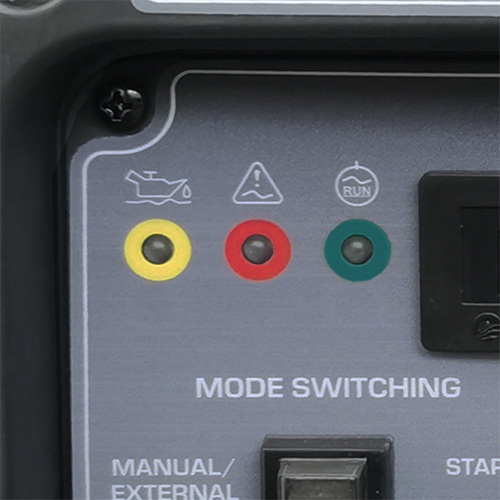

Indicator system enables quick monitoring of generator status, oil level, load, and other important parameters.
This model is compatible for Tandem Power Technology and pairs with KS 3000PS.

Delivery

Free shipping: receive your order in just 1-5 business days.

Payment

We offer a wide range of secure and convenient payment methods, including:

Features

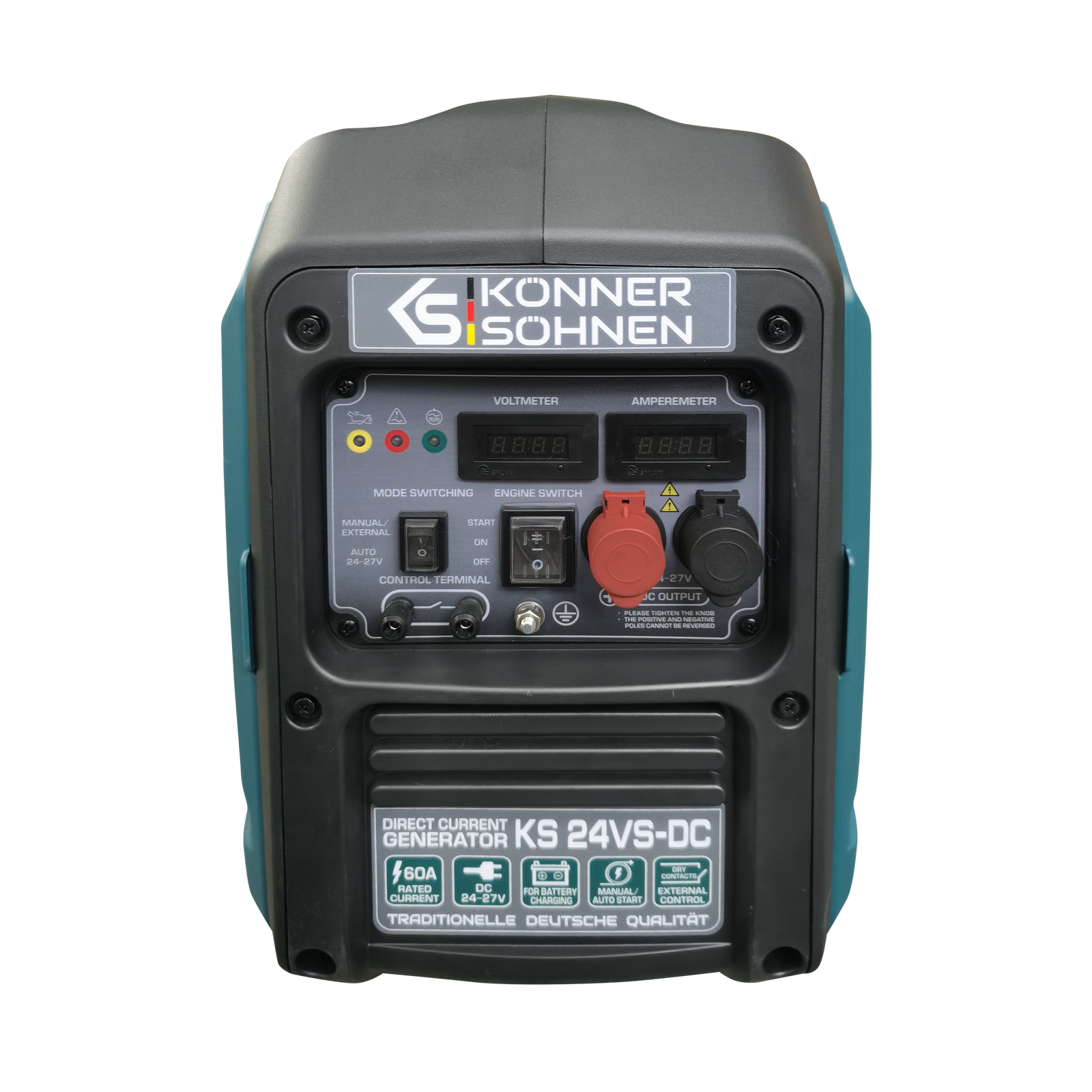

The 24-27V 60A Constant Voltage Generator by German brand Könner & Söhnen® is a powerful and reliable backup charger for 24V batteries. Charging directly from a DC generator is highly efficient and requires no voltage conversion, saving fuel compared to charging using standard AC generators. It features AUTO and MANUAL/EXTERNAL modes for automatic or manual control. The control panel includes indicators for voltage, overload, and oil level. Ideal for powering 24V systems such as solar stations, medical equipment, surveillance, and vehicle battery maintenance during parking.

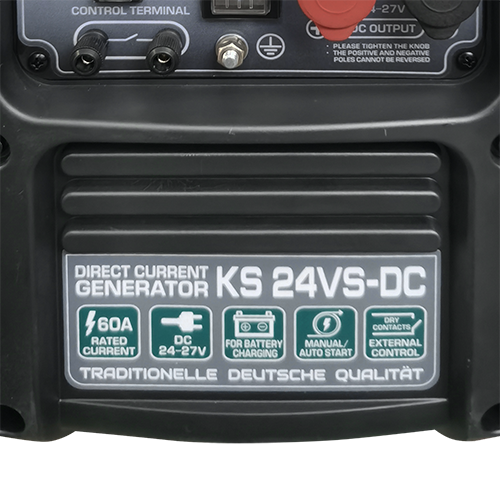

High power output (60A)

Enables the generator to power a wide range of devices simultaneously without exceeding 60A.

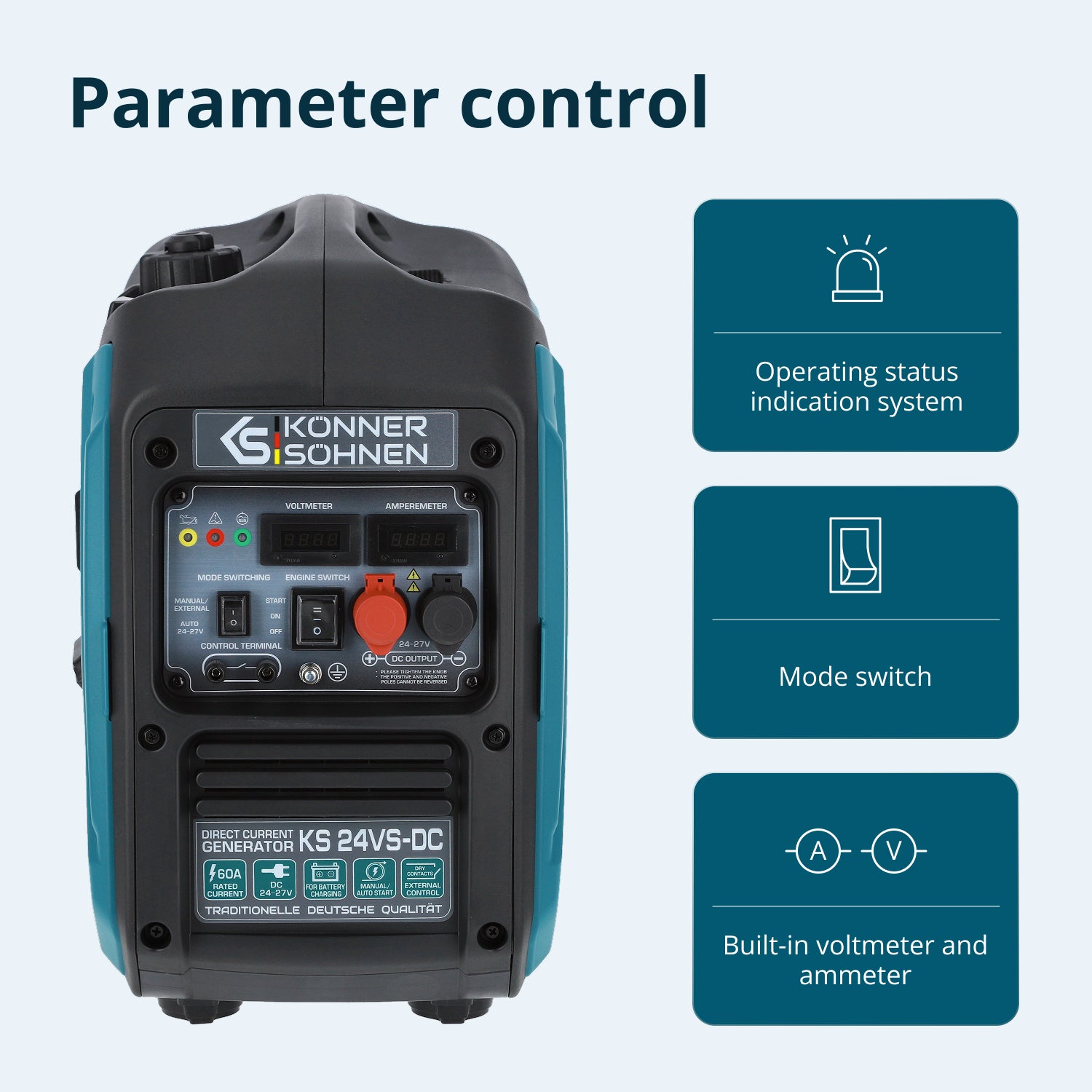

Parameter monitoring

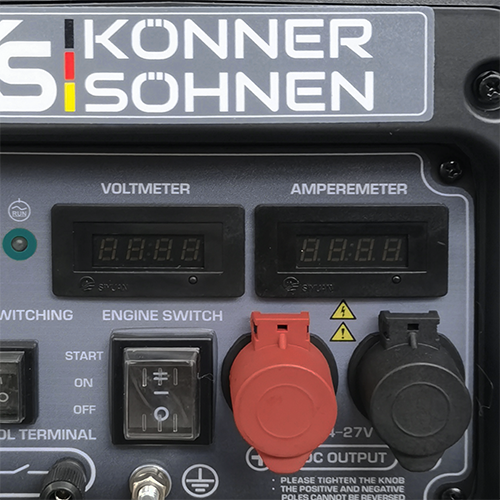

Thanks to integrated measuring instruments (voltmeter and ammeter), you can precisely control the generator electrical parameters, which is important for safe operation.

Convenient start-up

The option to choose between manual and automatic start modes enables the generator to adapt to various usage scenarios, providing autonomy during power outages.

Engine protection

Equipped with an oil level sensor and indicator, the generator alerts users in time when oil needs replenishing, preventing overheating and extending engine life without breakdowns.

Operational safety

The generator includes a control system that protects it from overload, overheating, and failure of the inverter block and alternator, increasing device reliability.

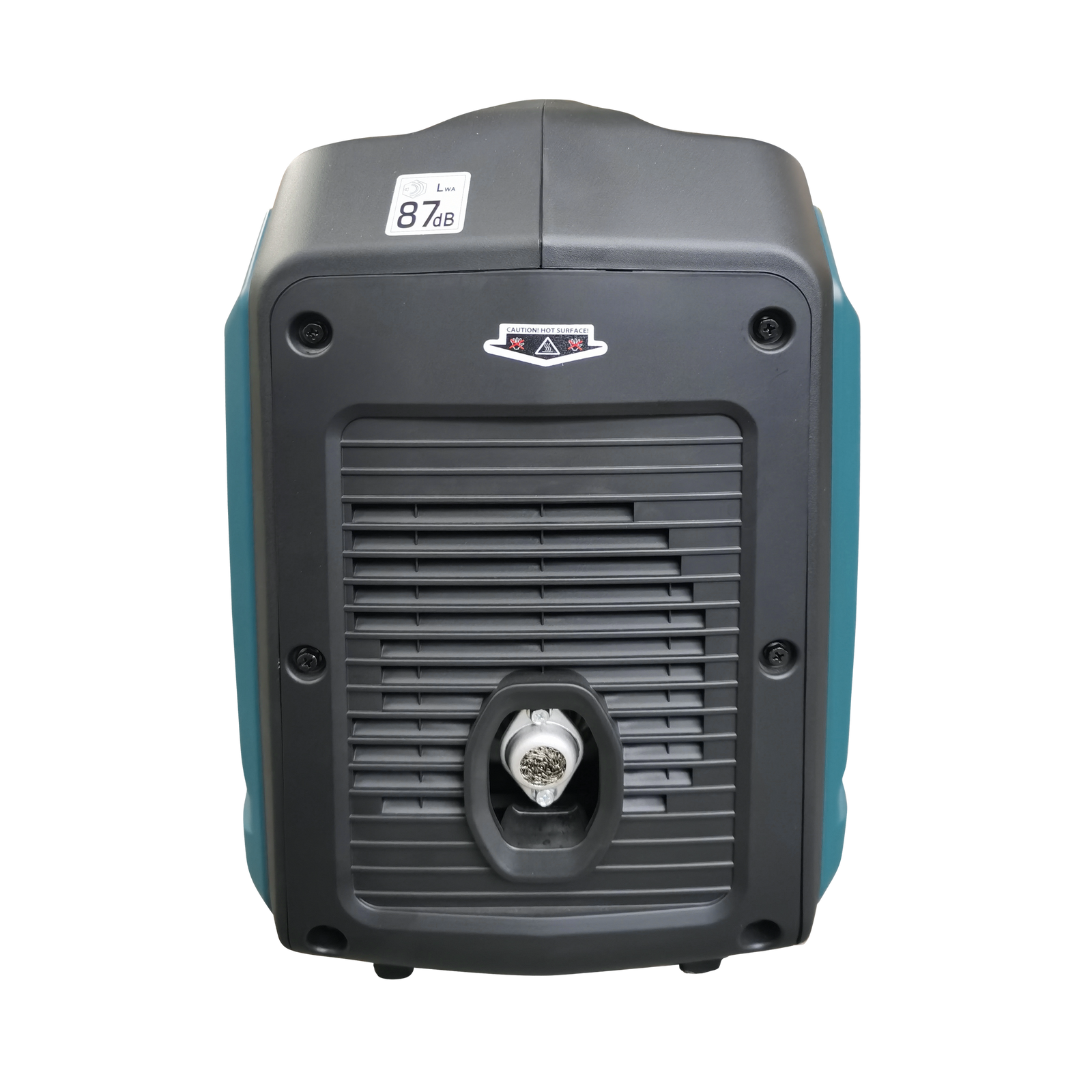

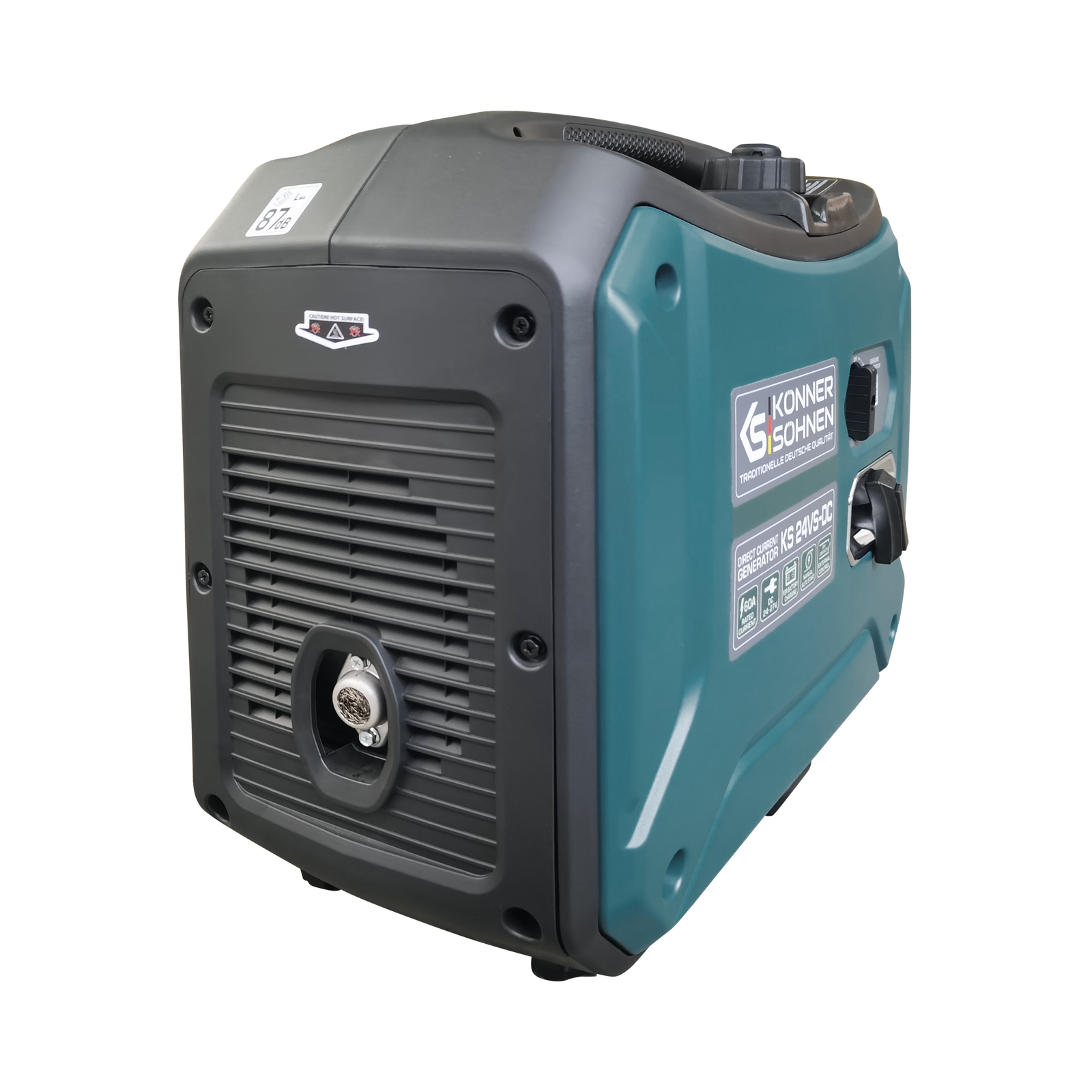

Reduced noise level

Thanks to the soundproof casing, the generator operates more quietly, making it suitable not only for construction sites but also for residential use.

Efficiency and Durability

The EURO 5 compliant 4-stroke engine ensures high fuel efficiency through optimized consumption and enhances generator longevity by reducing wear and providing stable operation under various conditions.

Specification

KS 24VS-DC Direct Current Generator

Voltage, V	24-27
Nominal power, kW	1.6
Current (max), A	60
Fuel tank volume, l	5
LED display	voltage, amperage
Noise level Lpa (7m)/Lwa, dB	62/87
Engine model	KS 100i
Engine type	4-stroke gasoline
Engine power, hp	2.5
Crank case volume, l	0.4
Engine cylinder volume, cm3	79.7
Engine start	automatic, manual
Protection class	IP23M

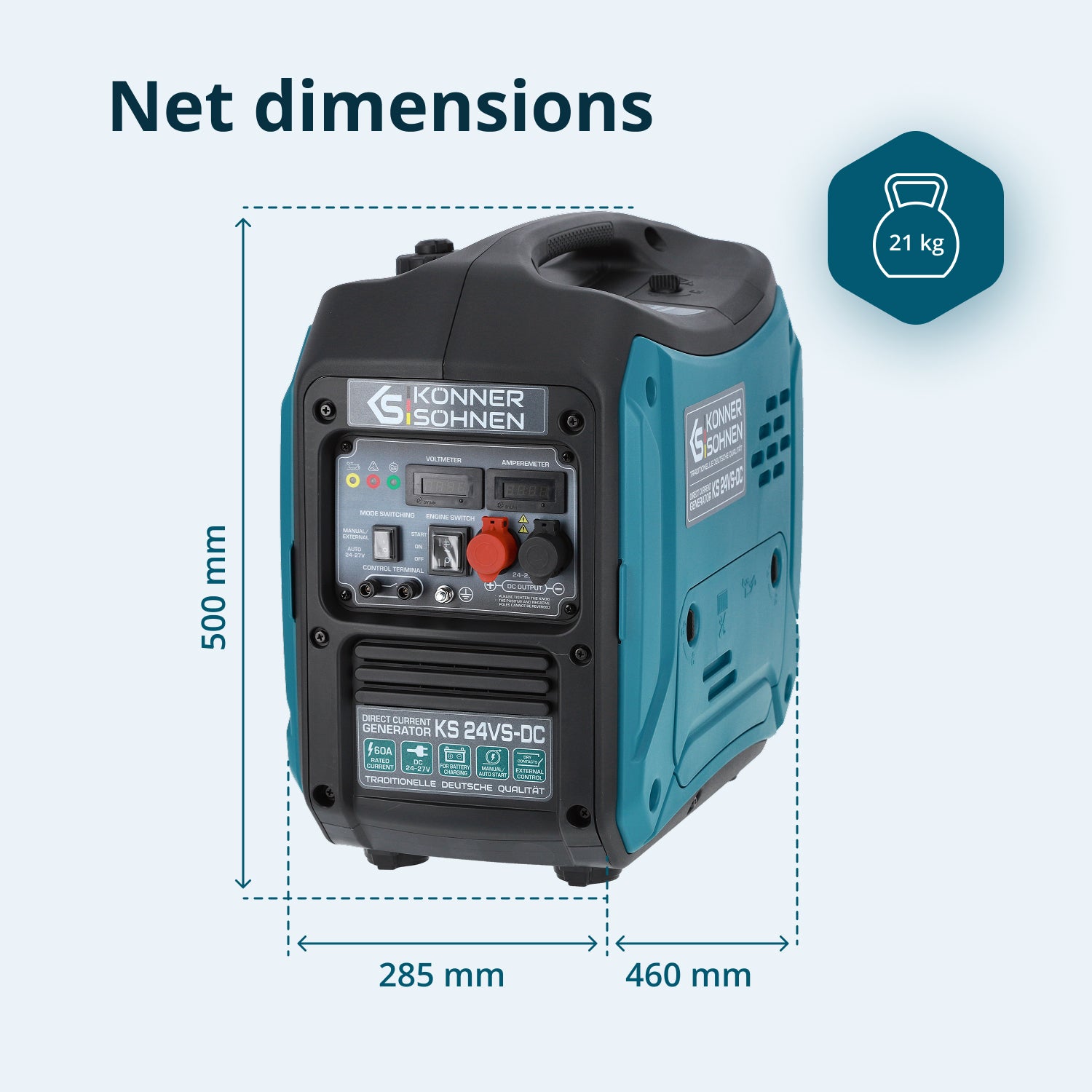

Net dimensions (LxWxH), mm	500×285×460
Gross dimensions (LxWxH), mm	625×335×540
Net weight, kg	21
Gross weight, kg	23.0
SKU	KS 24VS-DC
Barcode	4260405368297

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
