Max Power: 5.5 kW

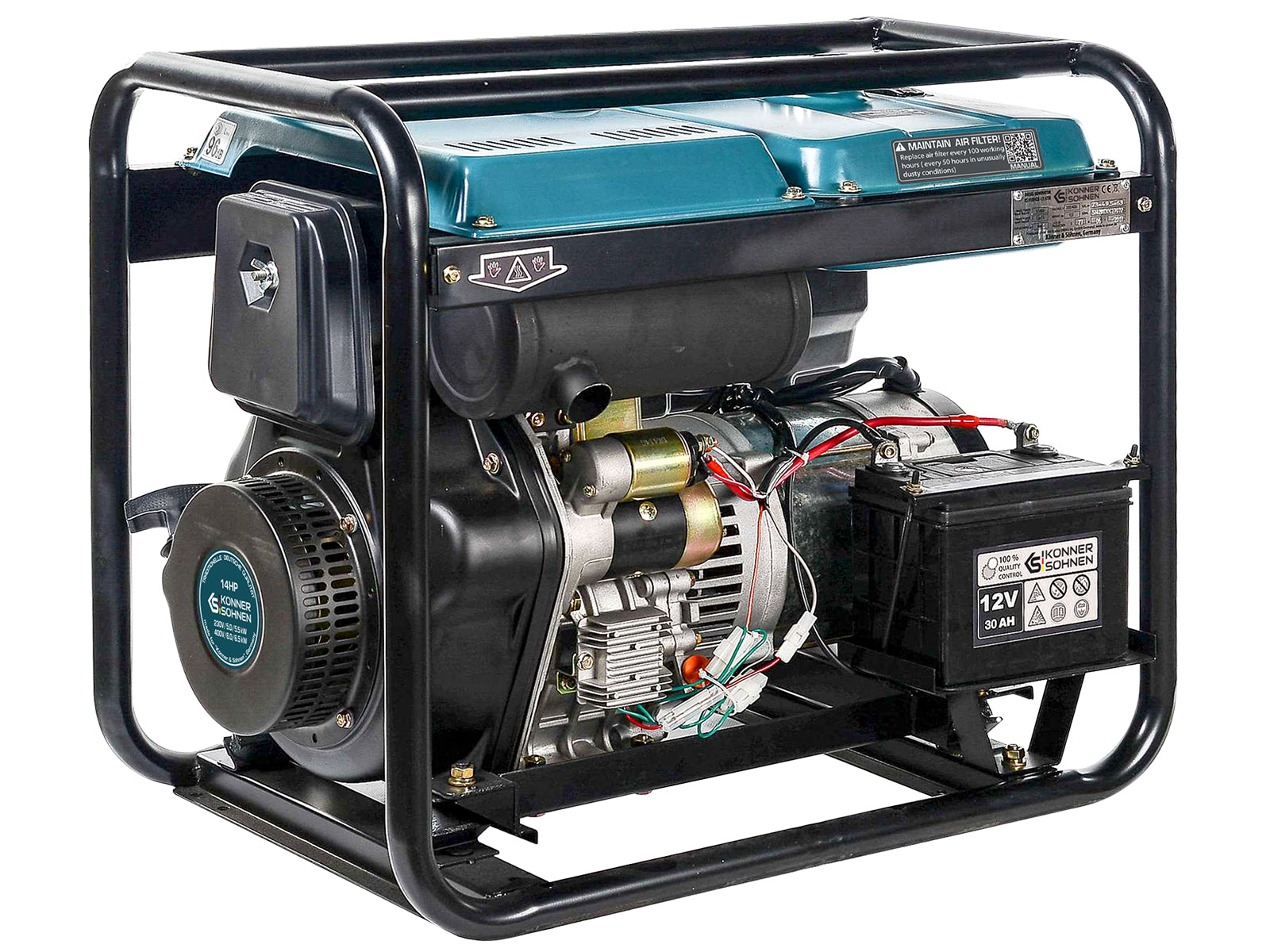

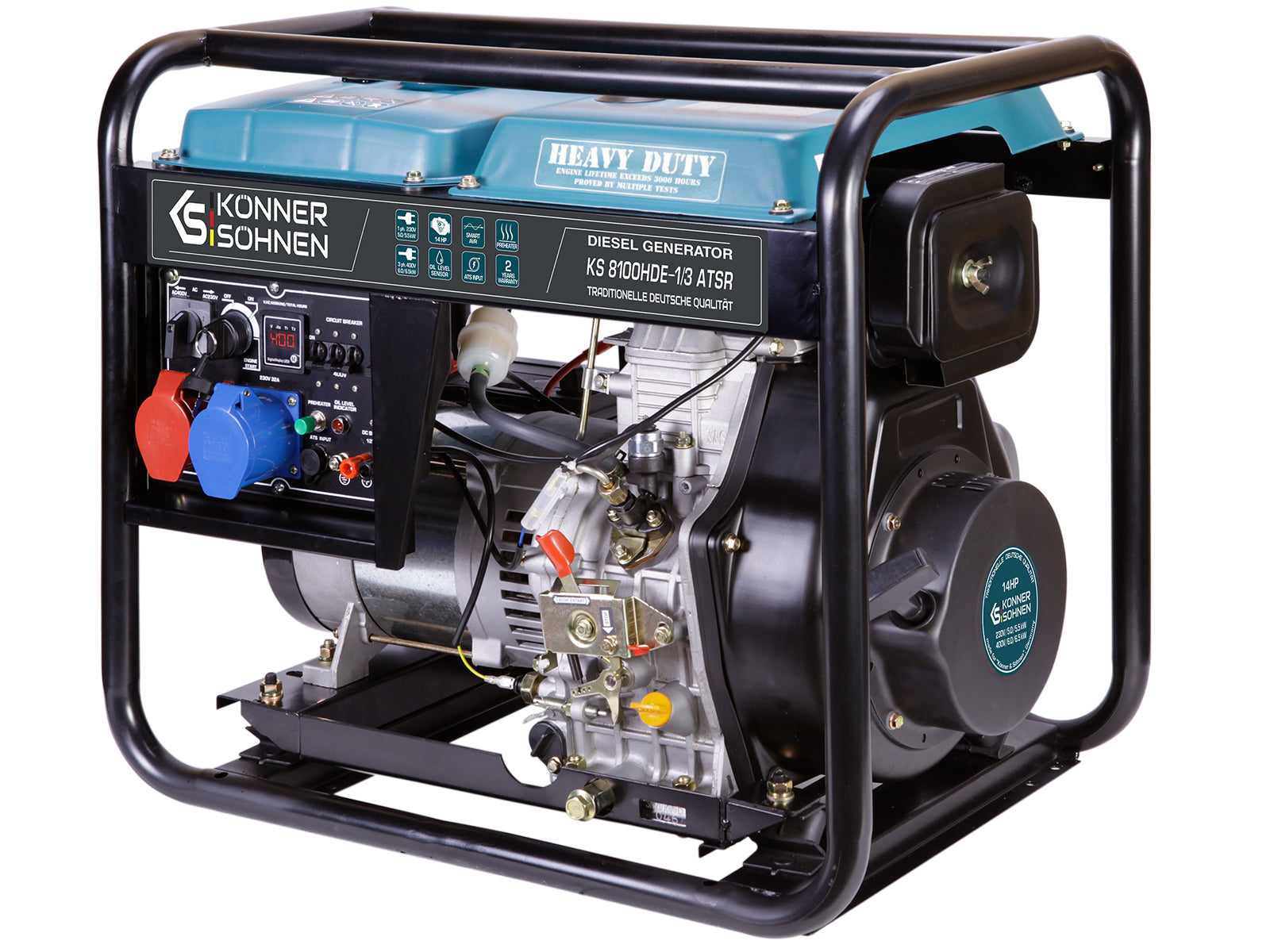

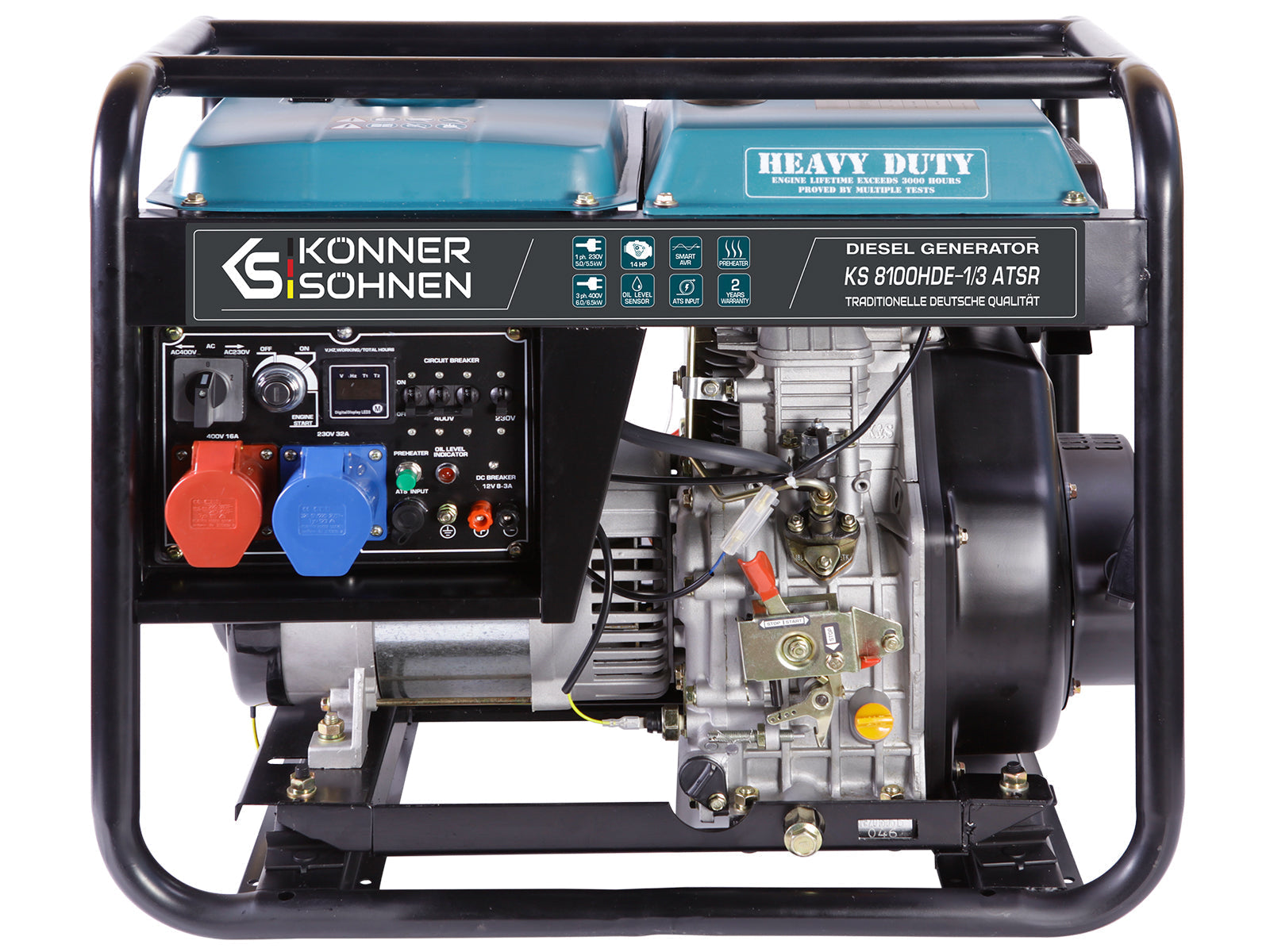

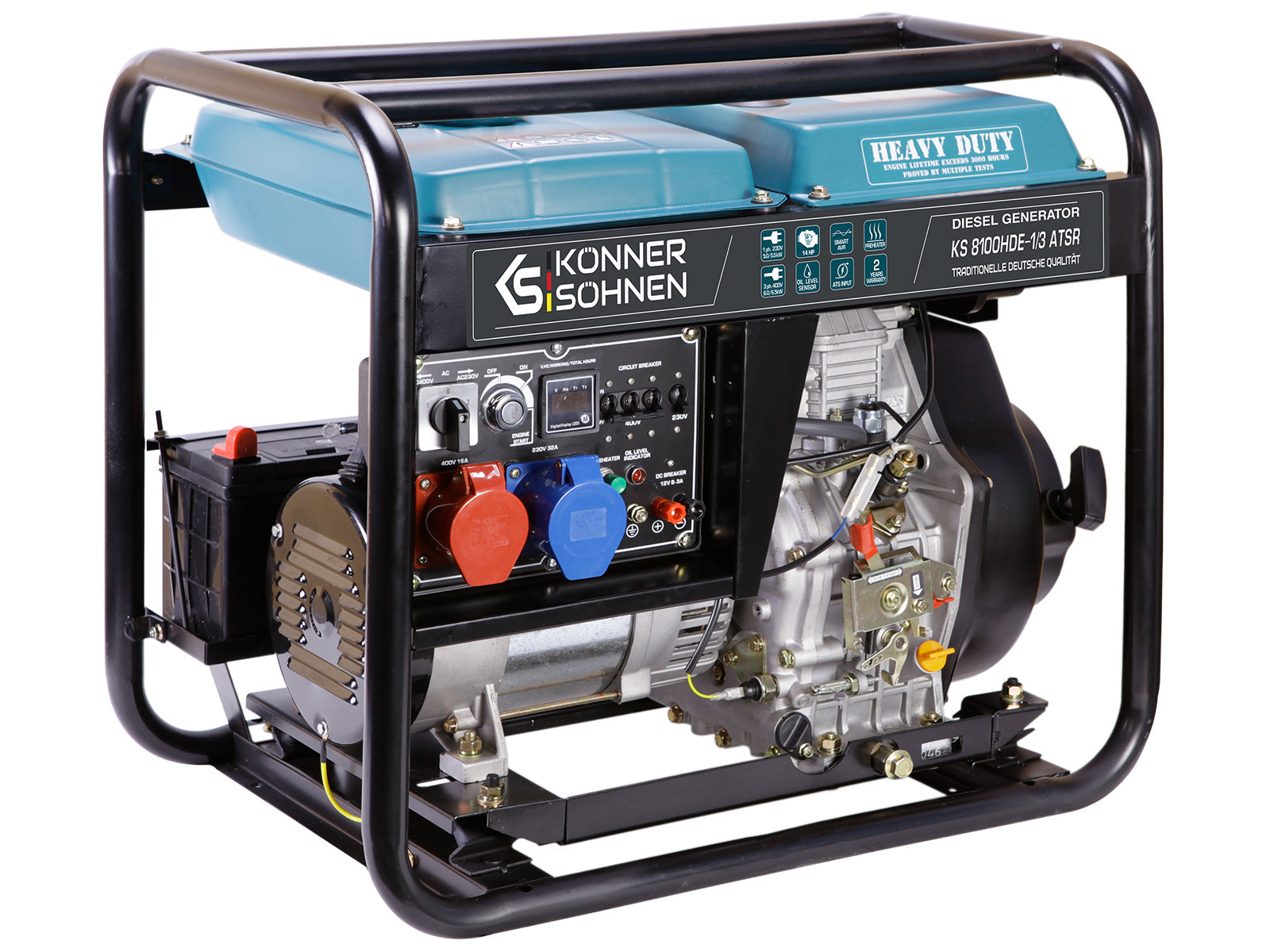

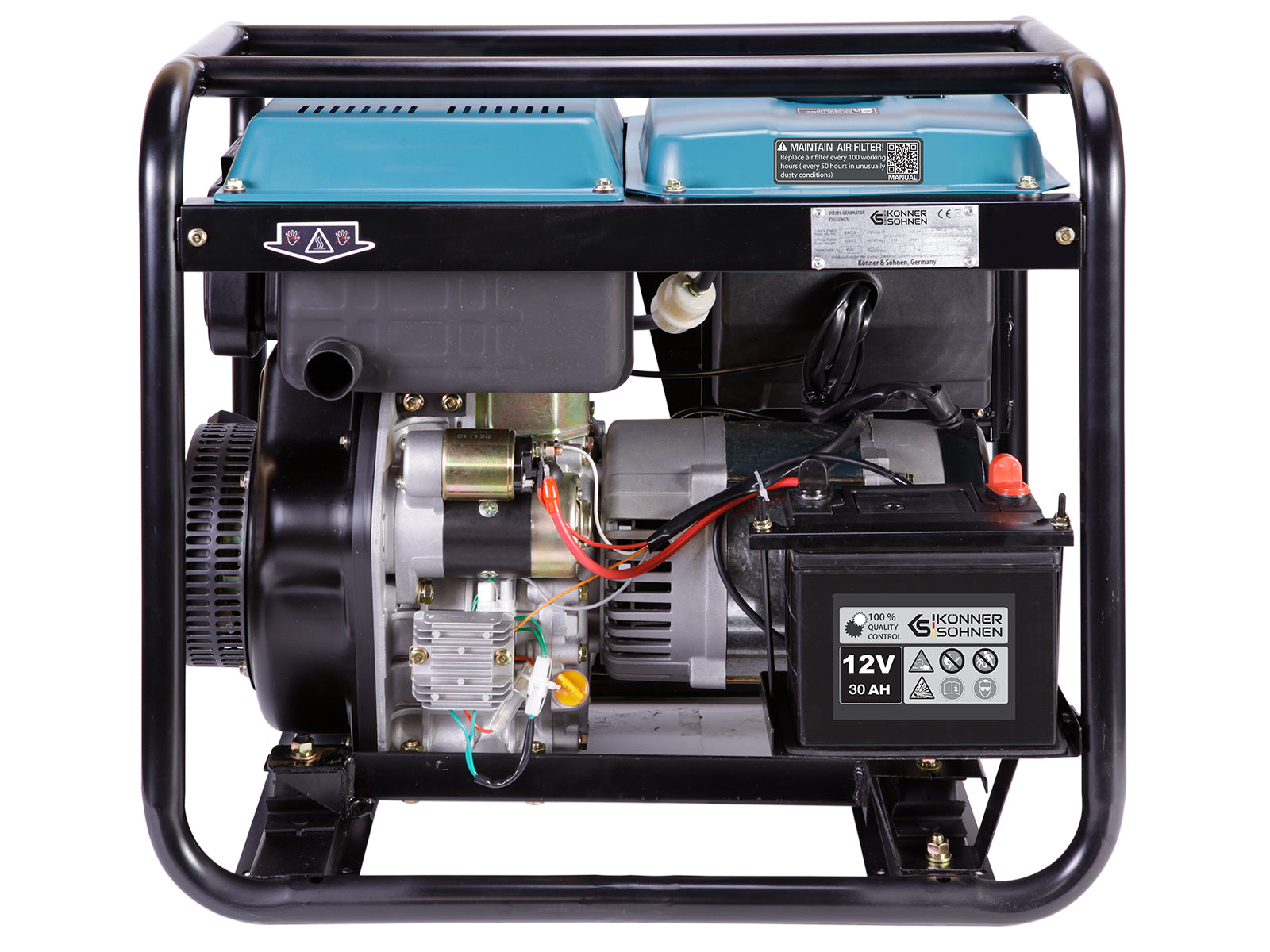

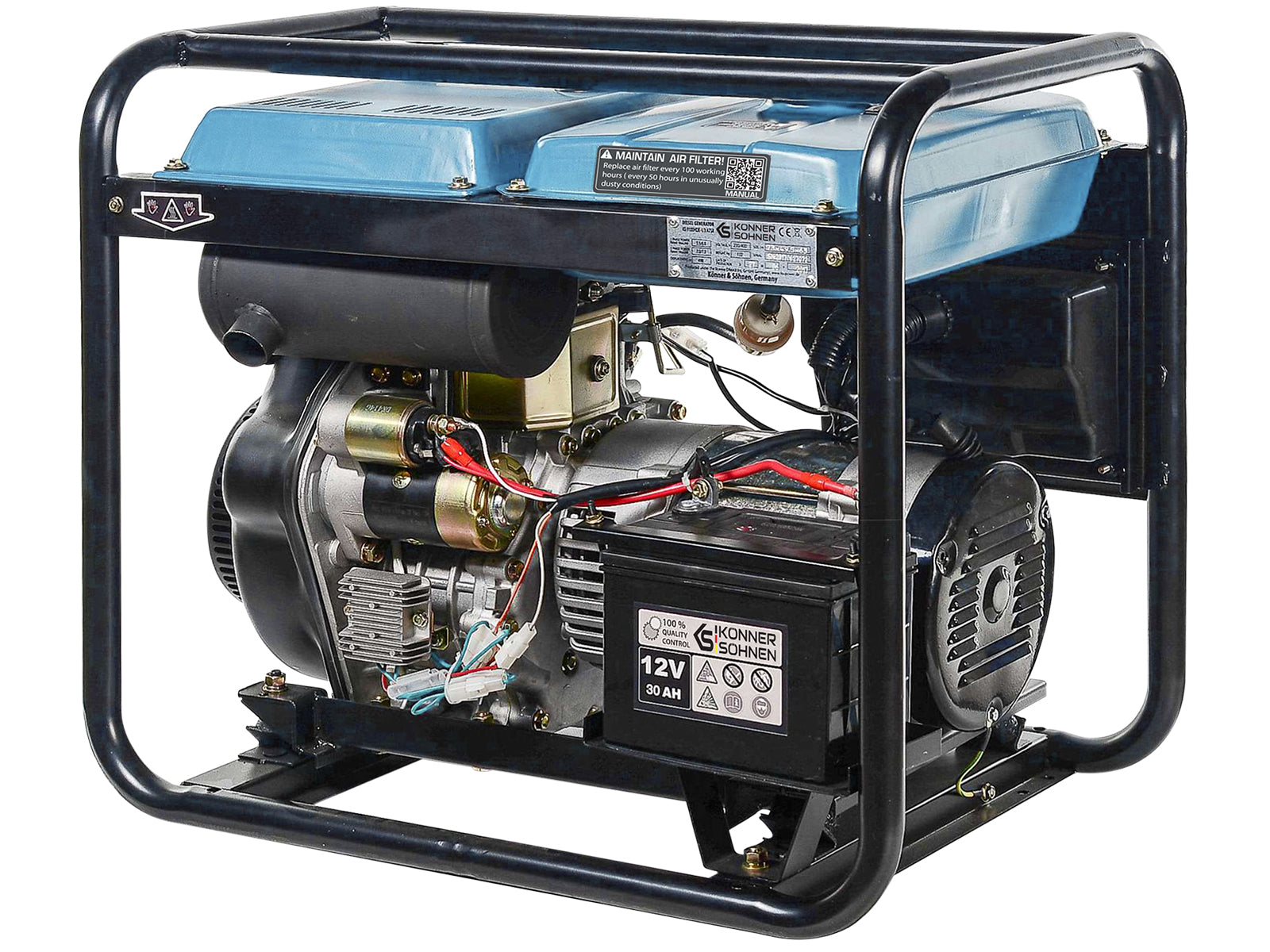

Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)
€1.679,00
Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)
€1.679,00
Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)
Unavailable
€1.679,00
Specification
| Frequency, Hz: | 50** |
| Max/Nominal power (230V), kW: | 5.5/5.0 |
| Max/Nominal power (400V), kW: | 6.5/6.0 |
| Fuel tank volume, l: | 11 |
| Runtime at 50% load, h***: | 6.9 |
Specification
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kW | 5.5/5.0 |
| Max/Nominal power (400V), kW | 6.5/6.0 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 23.91/11.74 |
| Outlets | 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A |
| Runtime at 50% load, h*** | 6.9 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 71/96 |
| Power output DC, V/А | 12/8.3 |
| Engine type | Diesel powered one-cylinder, four-stroke air-cooled |
| Engine model | KS 480HD-V |
| Engine power, hp/kW | 14.0/10.3 |
| Preheater | + |
| Fuel tank volume, l | 11 |
| Crank case volume, l | 1.65 |
| Engine cylinder volume, cm3 | 456 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Frame diameter | 32 mm, round |
| Accumulator (A·h) | 30 |
| Output for ATS | + |
| Protection class | IP23M |
| Includes | Generator, Packaging, Manual, Screwdriver PH2 6.0 mm, 32 A CEE plug (2P+E), Portable plug CEE 400V 16А (3P+E+N), Start key, Open end wrench 8х10 mm, 12х14 mm, 17х19 mm |
| Net dimensions (LxWxH), mm | 730×495×630 |
| Gross dimensions (LxWxH), mm | 750×550×670 |
| Net weight, kg | 117 |
| Gross weight, kg | 125.0 |
| SKU | KS 8100HDE-1/3 ATSR |
| Barcode | 4260405362202 |
Benefits
Delivery
- Free shipping: receive your order in just 1-5 business days.
Delivery
Payment
- We offer a wide range of secure and convenient payment methods, including:
Payment
Features
Könner & söhnen engines
Engines for both diesel and gasoline generators are manufactured under the license of DIMAX Int. GmbH and are marked with K&S logo. High power of engines in relation to the alternator allows to receive the declared power output and maintain stable work at any load. All engines are tested for continuous operation, and then disassembled and examined for trouble-shooting purposes. Each engine and each generator have an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the latest EURO V emission standards.

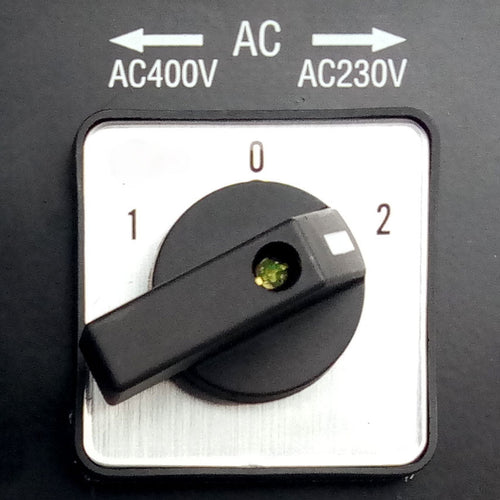

VTS system
Universal generators 2 in 1 with a unique phase switching system VTS (Voltage Transfer Switch), which allows you to use one generator as a single-phase (230V) and three-phase (400V) with almost no loss of power. Each mode has its own automatic protection. No need to buy two separate generators.

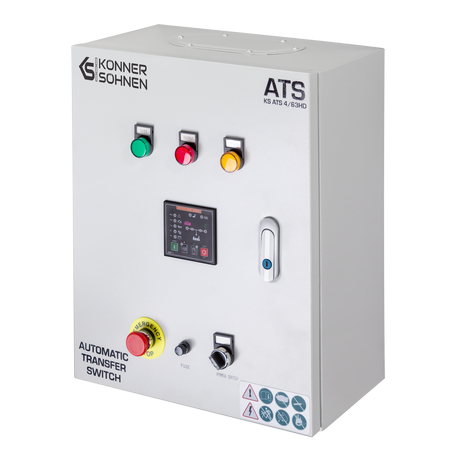

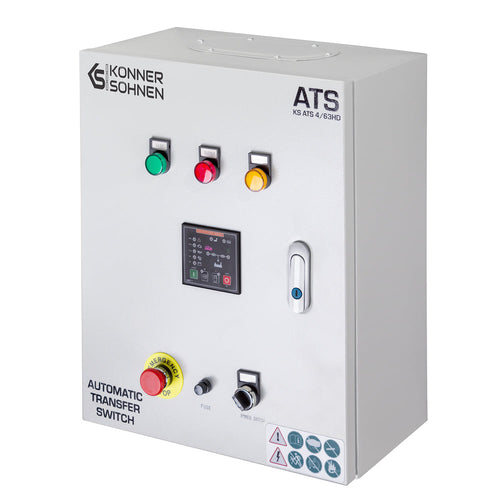

Automatic transfer switch
The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.
Increased engine resource
Könner & Söhnen® "HEAVY DUTY" series diesel generators feature an increased engine lifespan, ensuring a longer service life and the ability to operate for more hours without interruption, as confirmed by multi-hour, multi-level testing. Of course, the engines achieve such high performance through proper operation and scheduled maintenance.

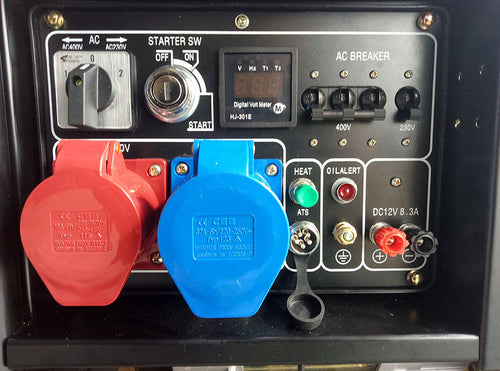

Ergonomic control panel
Convenient and ergonomic generator's control panel allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintain the generator, extending the operation life.
Preheater function
All Heavy Duty series generators are equipped with a preheat function, which allows you to easily start a generator in winter.
Avr
“Könner & Söhnen” series diesel generators are equipped with intelligent voltage stabilization system AVR. It allows to keep the voltage at a constant value of 230 V and protects against unwanted short circuits.

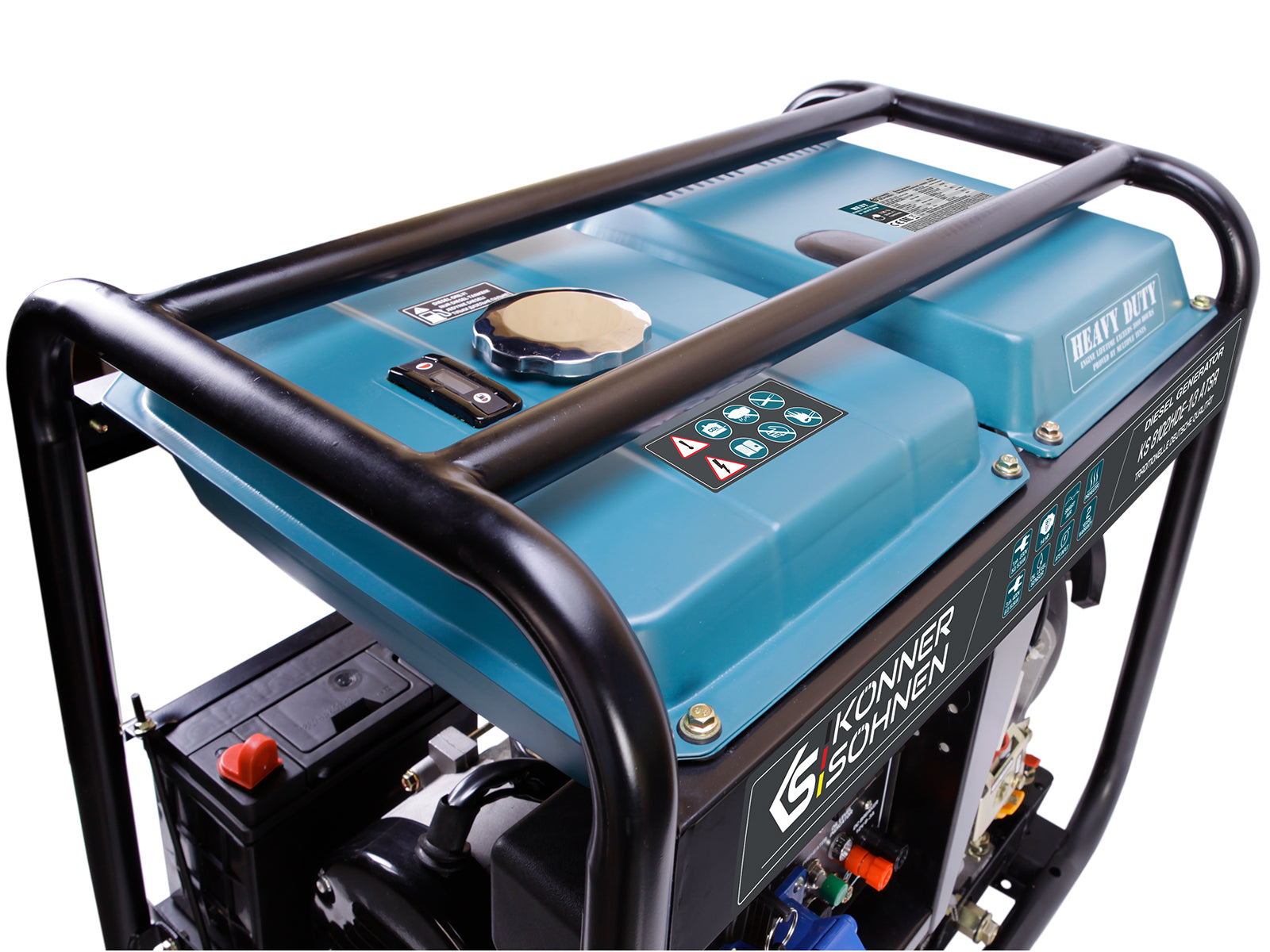

Enforced frame
Additional frame reinforcement with the upper protective strips allows HEAVY DUTY professional series generators to operate in a more rigid mode. The reinforced frame structure protects the tank against damage during operation and transportation.
Dampers to lower vibration
All models of Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. The working generator will not damage the floor covering, and the frame coating will not be scratched.

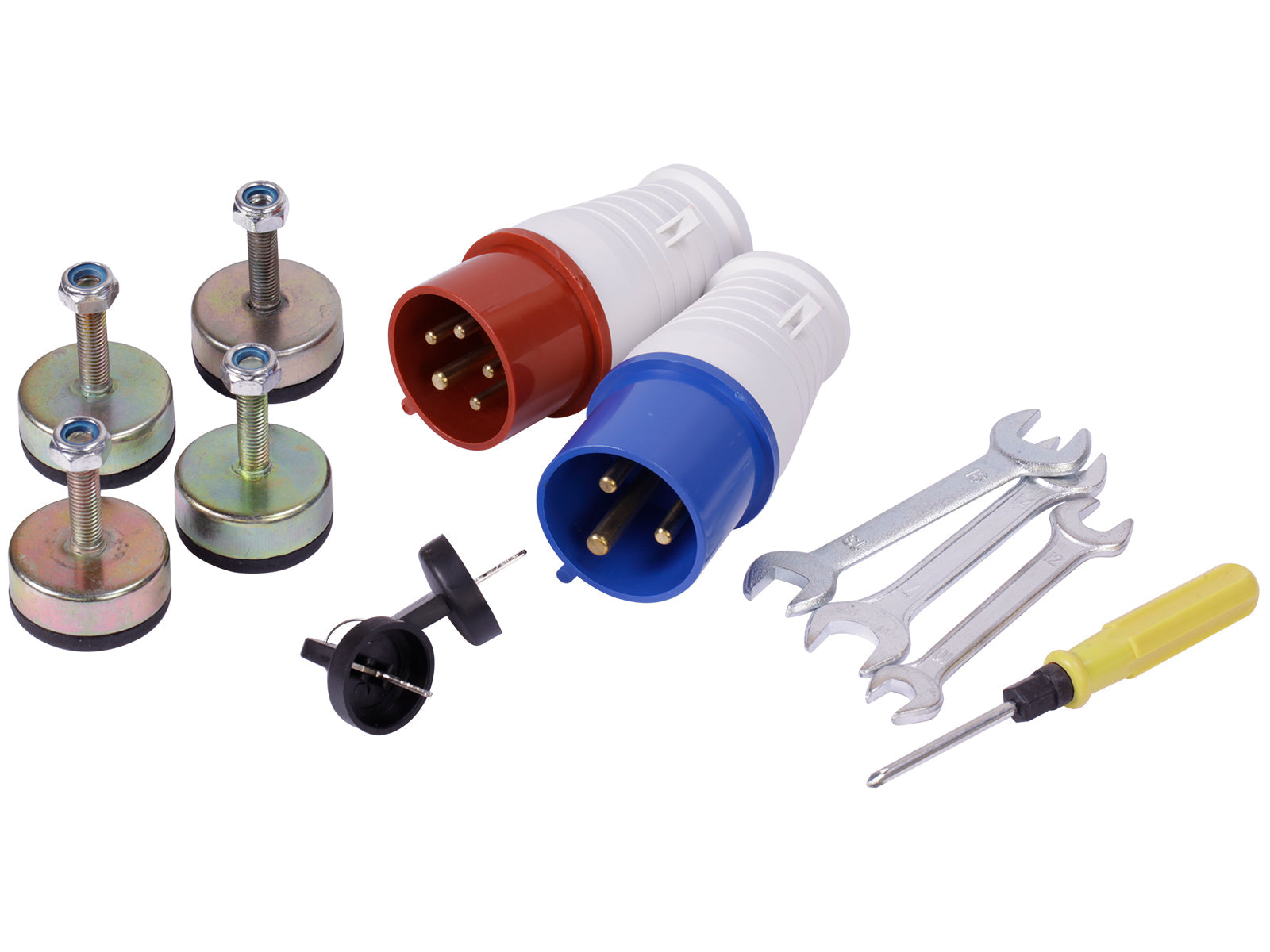

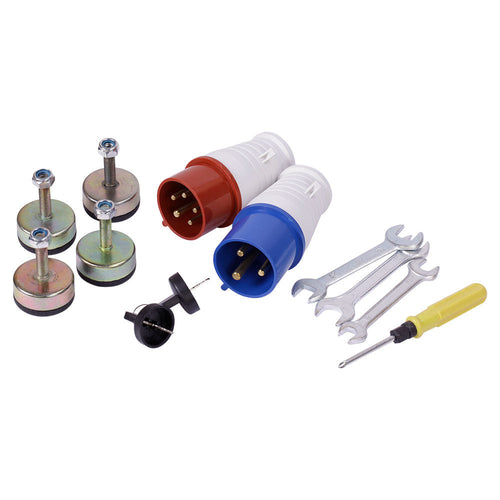

Accessories set
Generator is equipped with additional accessories: a portable 3Р+Е+N 16A 400V power plug, a portable 2P+Е 32A 230V power plug, a 8x10mm hook key, 12x14mm and 17x19mm keyholes and a two way 6.0mm PH2 screwdriver.
Optional KS 6-9D KIT
Transportation kit KS 6-9D KIT includes: wheels – 4 pcs.
Specification
Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kW | 5.5/5.0 |
| Max/Nominal power (400V), kW | 6.5/6.0 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 23.91/11.74 |
| Outlets | 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A |
| Runtime at 50% load, h*** | 6.9 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 71/96 |
| Power output DC, V/А | 12/8.3 |
| Engine type | Diesel powered one-cylinder, four-stroke air-cooled |
| Engine model | KS 480HD-V |
| Engine power, hp/kW | 14.0/10.3 |
| Preheater | + |
| Fuel tank volume, l | 11 |
| Crank case volume, l | 1.65 |
| Engine cylinder volume, cm3 | 456 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Frame diameter | 32 mm, round |
| Accumulator (A·h) | 30 |
| Output for ATS | + |
| Protection class | IP23M |
| Includes | Generator, Packaging, Manual, Screwdriver PH2 6.0 mm, 32 A CEE plug (2P+E), Portable plug CEE 400V 16А (3P+E+N), Start key, Open end wrench 8х10 mm, 12х14 mm, 17х19 mm |
| Net dimensions (LxWxH), mm | 730×495×630 |
| Gross dimensions (LxWxH), mm | 750×550×670 |
| Net weight, kg | 117 |
| Gross weight, kg | 125.0 |
| SKU | KS 8100HDE-1/3 ATSR |
| Barcode | 4260405362202 |
